Bending Stress from the Flexure Formula
Mediumbending stressflexure

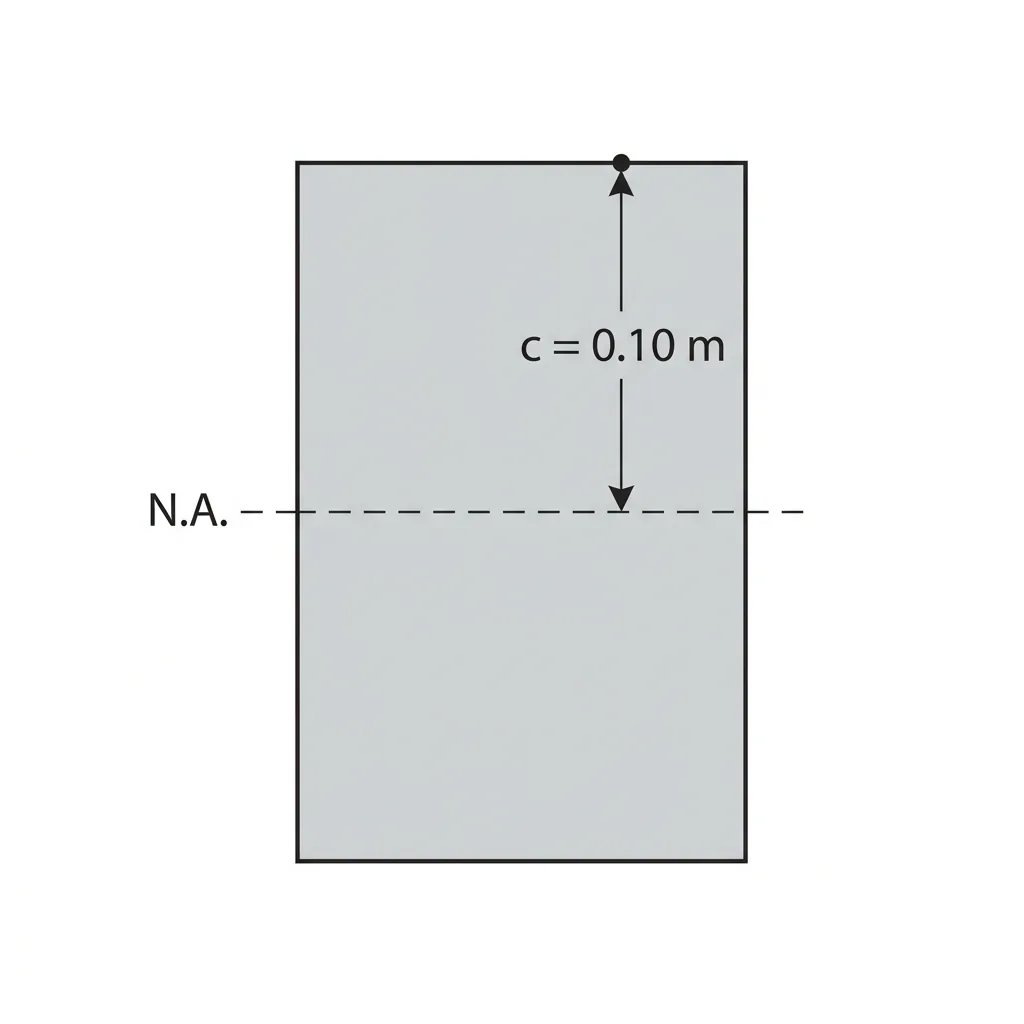

A beam carries bending moment M = 10 kN·m. At a distance c = 0.10 m from the neutral axis, with second moment of area I = 8 × 10-6 m4, what is the elastic bending stress magnitude?
- A62.5 MPa
- B100 MPa
- C125 MPa
- D250 MPa
Show solutionHide solution
Answer: C. 125 MPa
Apply the flexure formula: σ = Mc/I = (10,000 N·m)(0.10 m)/(8 × 10⁻⁶ m⁴) = 125 × 10⁶ Pa = 125 MPa.
