Left Reaction for an Off-Center Beam Load
Easyreactionsmoments

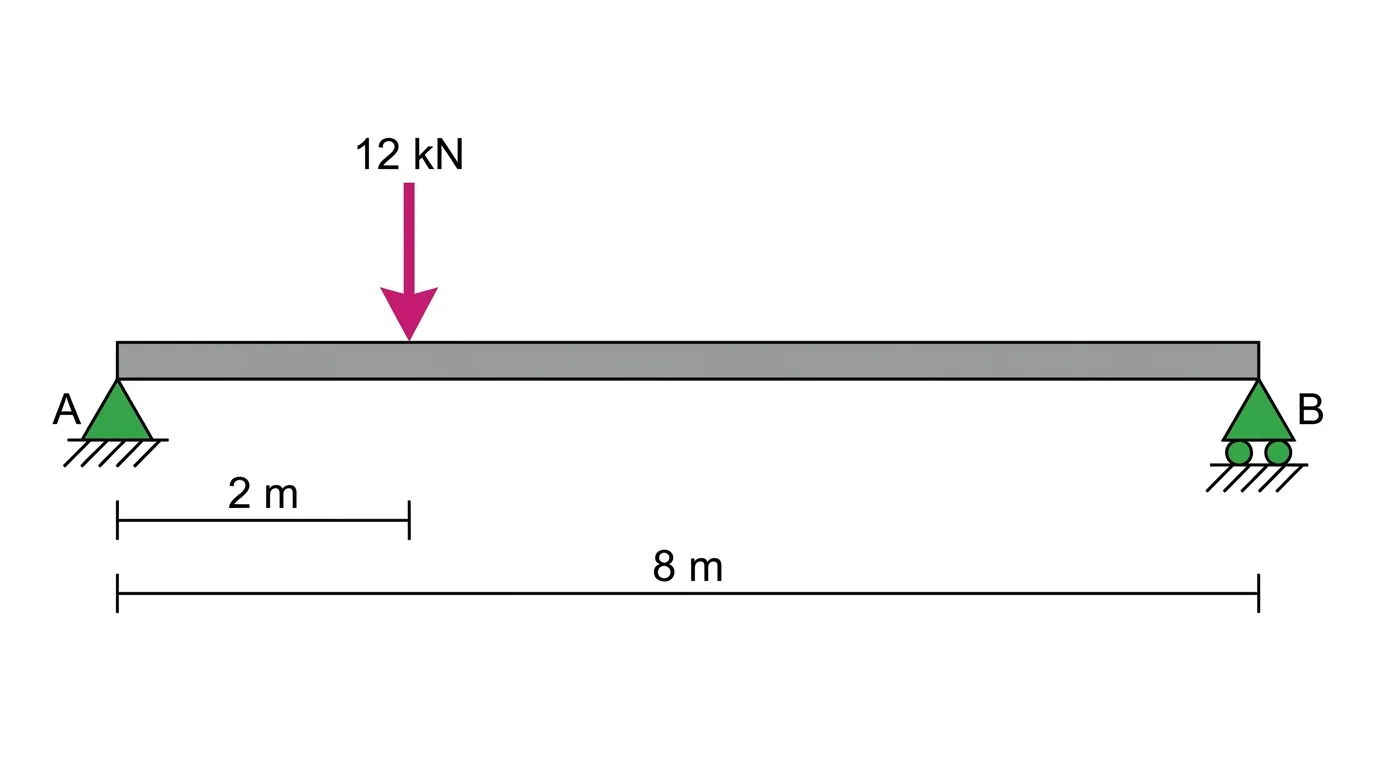

An 8 m simply supported beam carries a 12 kN downward point load 2 m from the left support. Neglect self-weight. What is the left vertical reaction?
- A3 kN
- B6 kN
- C9 kN
- D12 kN
Show solutionHide solution
Answer: C. 9 kN
Take moments about the right support: Rleft(8) = 12(8 − 2), so Rleft = 72/8 = 9 kN upward. The right reaction is 12 − 9 = 3 kN.
