Reactions of a Beam with Center Load
Easyreactionssymmetry

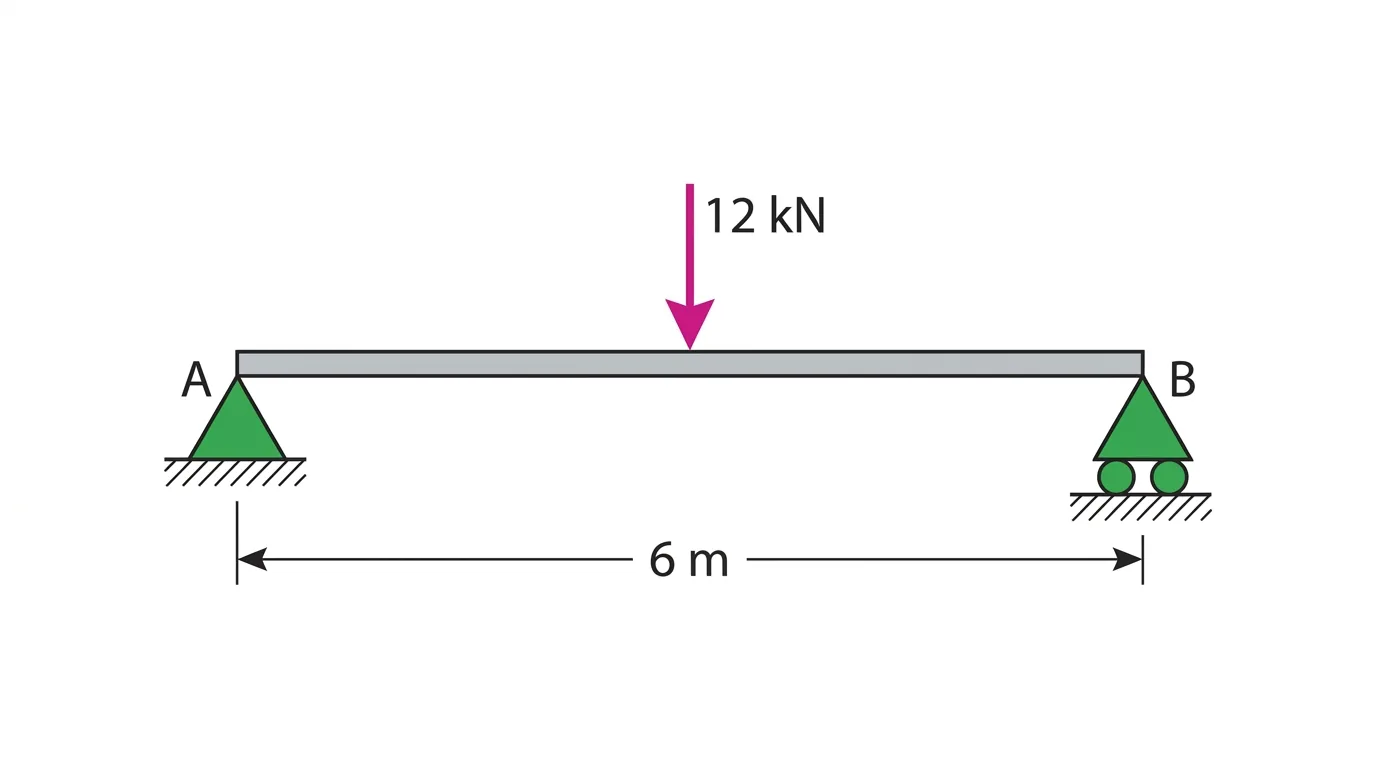

A simply supported 6 m beam carries a single 12 kN downward point load at its center. Neglect beam self-weight. What is each vertical support reaction?
- A3 kN
- B6 kN
- C9 kN
- D12 kN
Show solutionHide solution
Answer: B. 6 kN
Symmetry makes the reactions equal. Vertical equilibrium gives RA + RB = 12 kN, so each reaction is 12/2 = 6 kN upward.
