Uplift Load Combination with Wind

Mediumload combinationsupliftwind

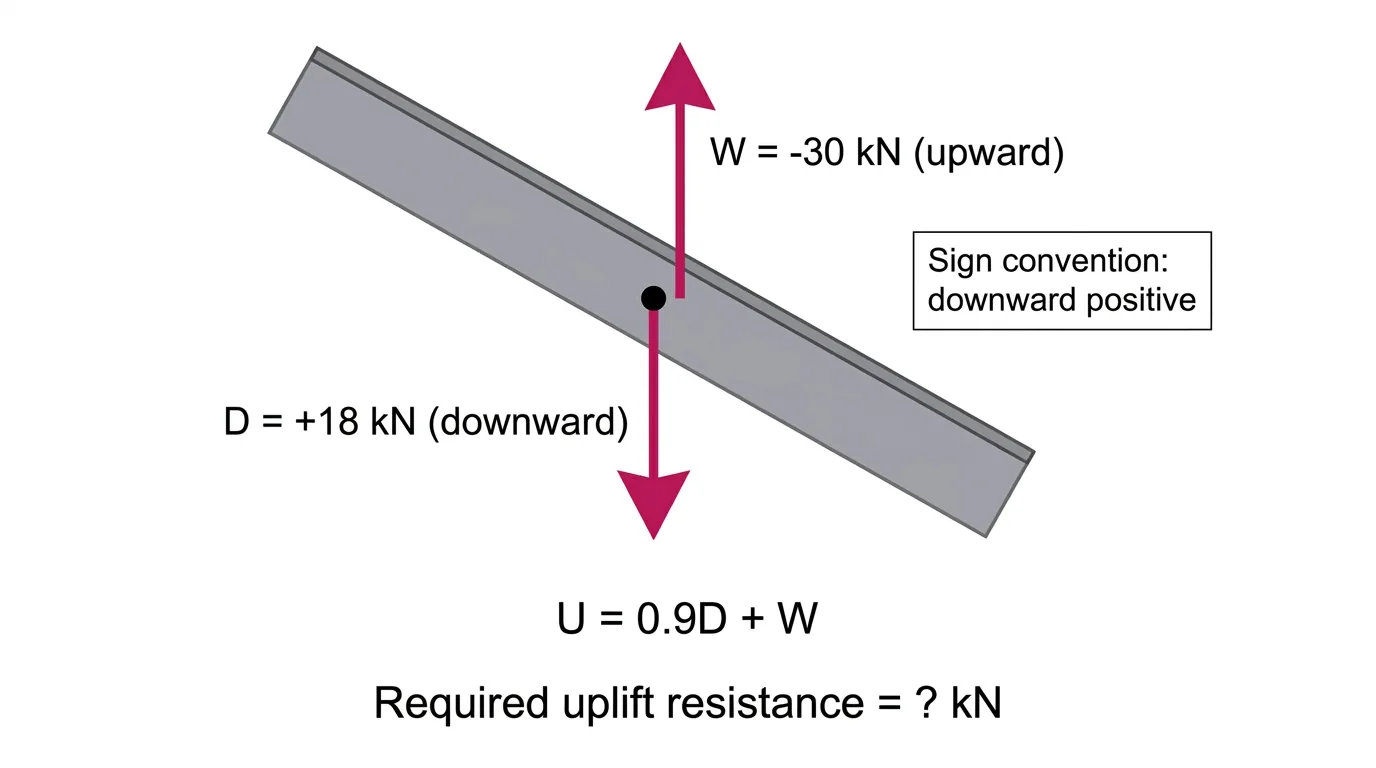

At a roof connection the dead-load effect is 18 kN downward and the wind effect is 30 kN upward. Take downward as positive, so D = +18 kN and W = −30 kN. Evaluate the supplied combination U = 0.9D + W (the wind effect is already on the basis this combination requires; no other forces act). What uplift resistance must the connection provide?
  1. A13.8 kN uplift resistance
  2. B46.2 kN uplift resistance
  3. C13.8 kN compression (downward)
  4. D30.0 kN uplift resistance
Show solution

Answer: A. 13.8 kN uplift resistance

Equation: U = 0.9D + W. Substitution: U = 0.9(18) + (−30) = 16.2 − 30 = −13.8 kN. Negative means net upward load, so the connection must resist 13.8 kN of uplift. Wrong: 46.2 kN adds the stabilizing dead load as if it were uplift (16.2 + 30); 13.8 kN compression reads the sign backward; 30 kN ignores that dead load offsets part of the wind uplift.
kN kN uplift
