Max Moment from a Midspan Point Load
Easybending momentpoint load

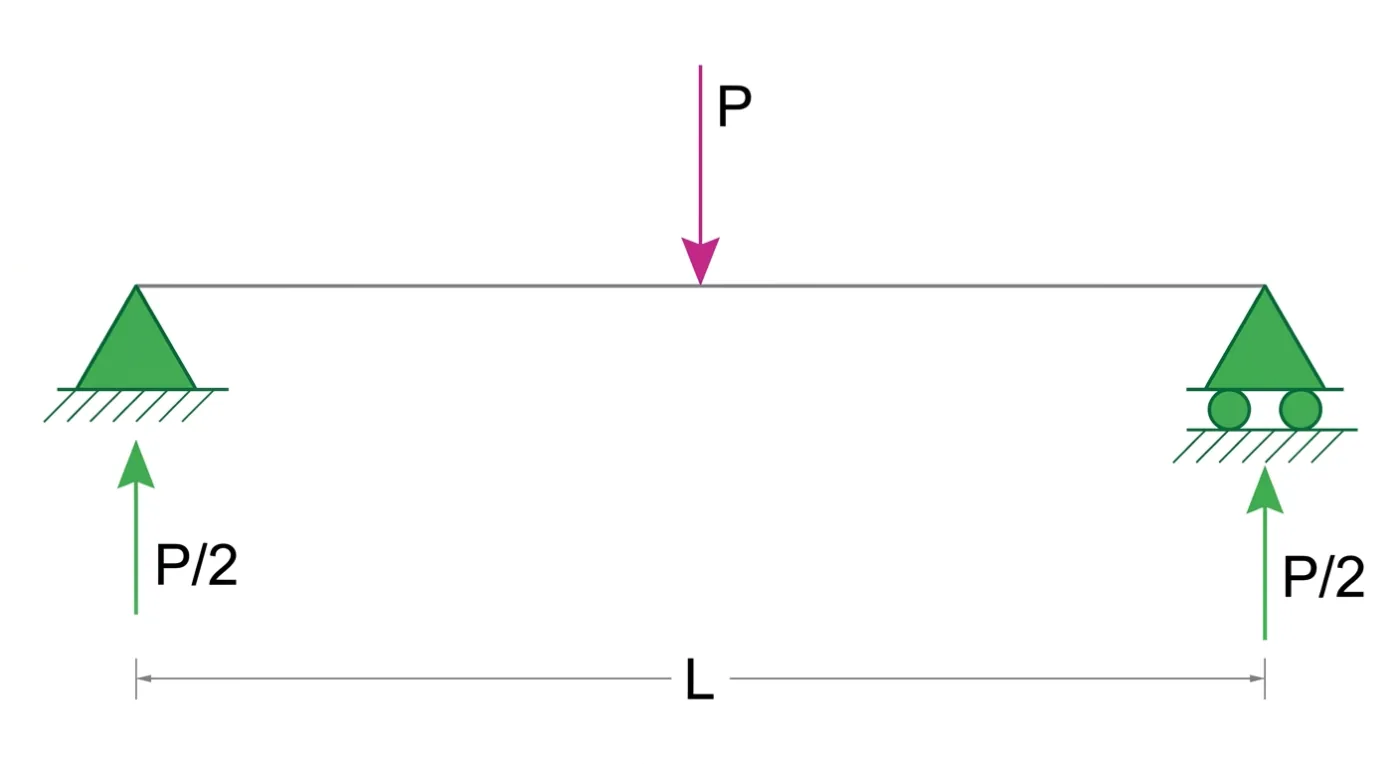

A simply supported beam of span L = 6 m carries a single downward point load P = 30 kN at midspan. What is the maximum bending moment?
- A45 kN·m
- B90 kN·m
- C180 kN·m
- D22.5 kN·m
Show solutionHide solution
Answer: A. 45 kN·m
Each reaction is P/2 = 15 kN. Under the load, M = R · L/2 = 15 · 3 = 45 kN·m, which is the standard Mmax = P L / 4 = 30 · 6 / 4 = 45 kN·m. 90 kN·m is P L / 2.
kN·m
